Todd Mostak
May 6, 2016

Why MapD? The possibilities of 1000X faster data exploration with GPUs

Try HeavyIQ Conversational Analytics on 400 million tweets

Download HEAVY.AI Free, a full-featured version available for use at no cost.

GET FREE LICENSE

MapD is a next-generation data analytics platform designed to process billions of records in milliseconds using GPUs. It features a relational database backend with advanced visualization and analytic features to enable hyper-interactive exploration of large datasets. The inspiration for MapD came from our own struggles wrestling with big data, marked by frustrating encounters with tempermental clusters and overnight queries.

Such "data trauma" is rampant. Even though our customers come from a diverse set of verticals, their pain points read much like our own. Each struggles to extract the value from their datasets only to find their existing tools are not up to the task. Whether querying these datasets takes hours, minutes or even tens of seconds, the customers yearn for something more – they want access to the insight hidden in their data at interactive speeds.

These customers aren’t using “slow” tools like traditional disk-based RDBMS or Hadoop. They are using state-of-the-art in-memory column stores expressly designed for analytic workloads. And yet partially because of the limitations of CPUs these tools run on, and partially because they do not even fully utilize that hardware, they are not fast enough.

The conventional solution in this situation is to throw more hardware at the problem. Depending on the dataset size, tens, hundreds or even thousands of servers may be provisioned in an effort to achieve the desired level of performance. While such an approach makes both the hardware and software vendors happy, it is no magic bullet. To begin with, big server footprints require lots of space, power, cooling, and technicians – all of which translate to significant expense for the organization. Second, the overhead of network I/O imposes a significant performance penalty on large distributed deployments, and given a cluster of a large enough size, may impose a latency tax such that even the simplest queries cannot be answered below a certain minimum time threshold.

This was the status quo that MapD was born into and was designed to ameliorate. MapD was built from the ground up to couple the fastest possible hardware with the fastest possible software to achieve orders-of-magnitude speedups over other systems. On the hardware side of the equation we leverage the massive parallelism and memory bandwidth of graphics processors (GPUs), originally designed for rendering video games but now turned general purpose compute engines that excel at parallelizable tasks like linear algebra and database queries. We then write our code to extract every ounce of performance out of that hardware, compiling our queries on-the-fly using LLVM to avoid cache misses and ensure maximum vectorization. To avoid having to move data to the GPUs at query time, “hot” data is cached in fast GPU memory, which today can range as high as 192GB per server (if the working dataset cannot fit on the GPUs, then MapD can execute on CPU). The net result is up to three orders of magnitude speed increase on standard SQL queries over other in-memory systems, comparing server-to-server.

MapD performance compared to leading in-memory database on 2-socket, 8-GPU system (group-by and filter query)

MapD Performance Comparison



Of course, 1000X speedups suggest that a single server running MapD could replace entire clusters of servers of in-memory analytic databases. But we find the following corollary to MapD’s speed even more exciting: with MapD, tasks which were previously non-interactive can be made hyper-interactive. By being able to scan and visualize data at rates measured in terabytes per second, analysts using our visualization frontend can immersively explore multi-billion row datasets across many simultaneous dimensions without lag. Our frontend adopts the cross-filter paradigm, where any filter applied to a chart chart is applied to all other charts. This means that if an analyst is viewing eight charts, a single adjustment to the filter on one chart requires that the seven other charts issue queries to the database to be updated synchronously. Without a high-performance system like MapD, powering this mode of exploration at interactive speeds even on medium-sized datasets is infeasible.

Fast query processing is not the only advantage of leveraging graphics cards. For example, MapD uses the native graphics pipeline of GPUs to render immersive visualizations of large result sets. It also takes advantage of the computational bandwidth of the GPUs to power machine learning algorithms like linear regression, K-Means Clustering, and even deep learning (via Caffe). With MapD, you can filter down to the data you are interested in, use it to train a classifier and then visualize the results, all without the data ever leaving the GPUs.

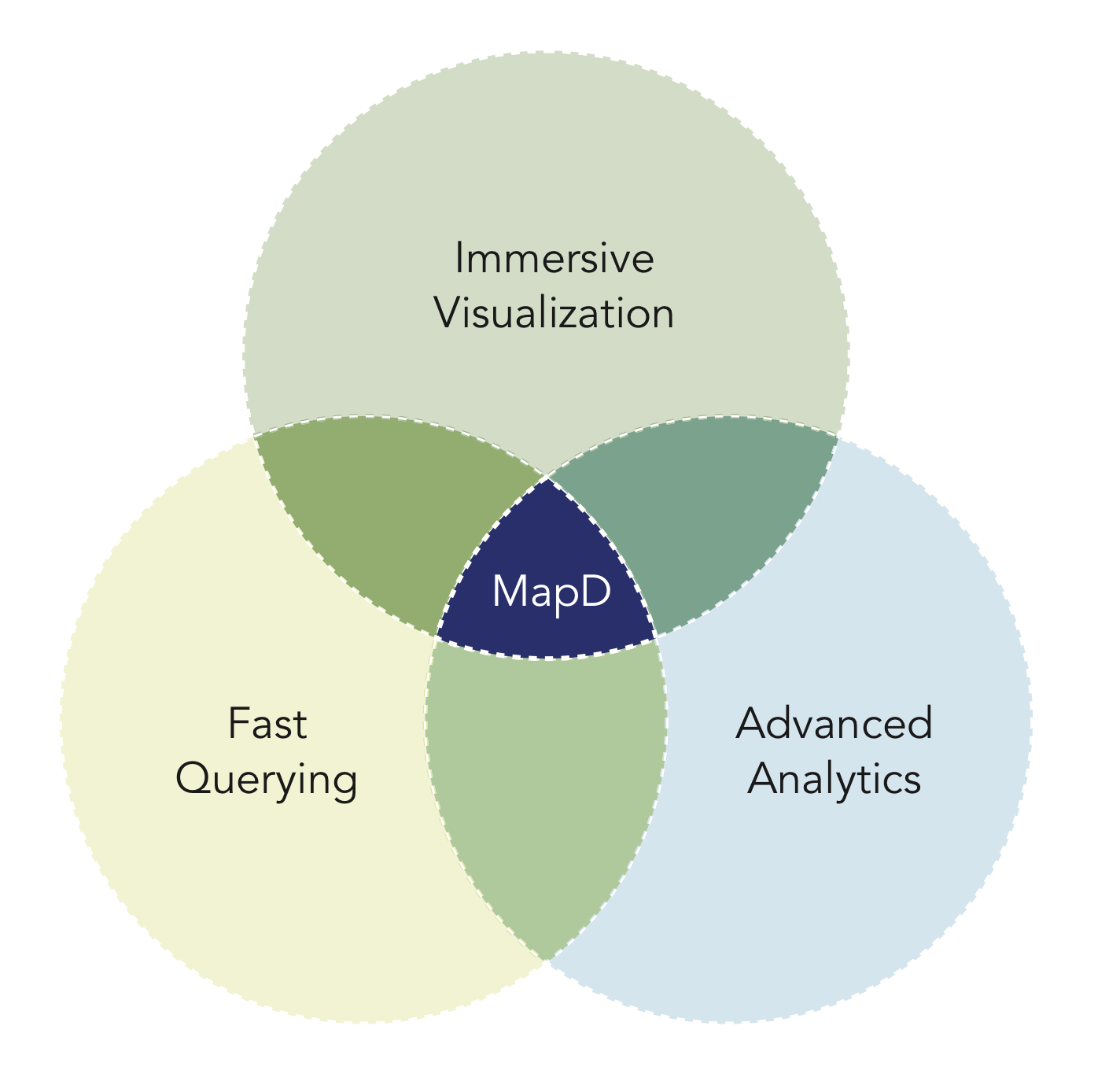

MapD Functionality

Early beta partners have found MapD to be an immensely powerful platform that allows them to explore their data in ways previously unimaginable. MapD allows a social network to explore real-time effectiveness of ads across different demographics and geographies just as it enables a major telecom to interactively analyze how network traffic is affecting load on the company’s servers. Queries that formerly took minutes now take milliseconds. In short, MapD makes the previously impossible possible.

If you are interested in finding out more, please download our white paper. Or if you are interested in becoming a beta partner, shoot us at email at info@mapd.com.
